Details

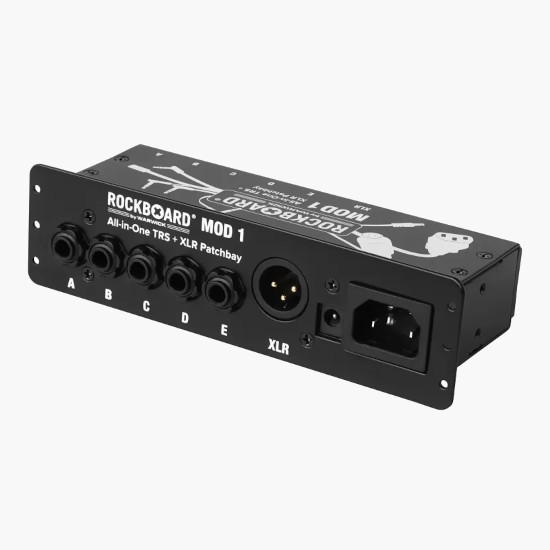

The RockBoard MOD 1 V2 All-in-One Patchbay is a compact module designed for RockBoard pedalboards (except the DUO series), providing TRS, XLR, IEC, and 2.1 x 5.5 barrel connections for versatile cable management. It allows permanent pedal connections beneath the board, centralizes access from instrument to amp and power supply, and features 4 TRS thru connections for pedals and an XLR thru for output to a console or PA, making it ideal for guitar and bass setups.
Features
- All-in-one patchbay for pedalboards
- Fits MOD slots in RockBoard pedalboards
- Compatible with a wide variety of other pedalboards
- Acts as central access point to your effects setup
- Establishes clean cable paths to and from the pedal board
- Detachable front plate for mounting on top or underneath Pedalboards
- 5 x 6,3 mm / ¼" TRS thru
- 1 x XLR thru (male front / female back)
- 1 x DC 2,1 x 5,5 mm barrel thru
- 1 x AC IEC thru (male front / female back)
- All connections mirrored on backside
- Dimensions: 160 x 60 x 33 mm
- Dimensions of the front plate): 175 x 48 mm
- Weight 450 g
- Incl. mounting screws, counter nuts and TX wrench
- PEDALBOARD NOT INCLUDED
