Details
JJ Electronic tubes deliver solid performance with consistent quality and rich harmonic response. JJ Electronic tubes are the choice for amp manufacturers and listeners looking for quality European pedigree and tonality.
Features

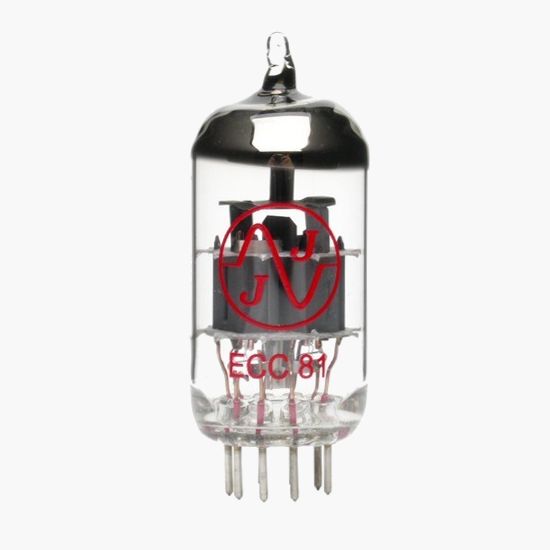

- Type: Miniature dual triode vacuum tube
- Designation: 12AT7 (USA), ECC81 (Europe)
- Base: B9A (Noval) – 9-pin miniature
- Heater Voltage (Uf): 6.3V (300 mA) or 12.6V (150 mA)
- Amplification Factor (μ): 60
- Typical Plate Voltage (Ua): 250V (maximum 300V)
- Typical Plate Current (Ia): 10 mA
- Plate Resistance (Ri): 11 kΩ
- Transconductance (S): 5.5 mA/V
- Maximum Plate Dissipation (Wa): ≤ 2.5 W per triode
- Maximum Cathode Current (Ik): ≤ 15 mA
- Grid Circuit Resistance (Rg): 1 MΩ
- Typical Grid Voltage (Ug): -2 V (minimum -50 V)
- Heater-to-Cathode Voltage (Uk/f): ≤ 90 V
