Details

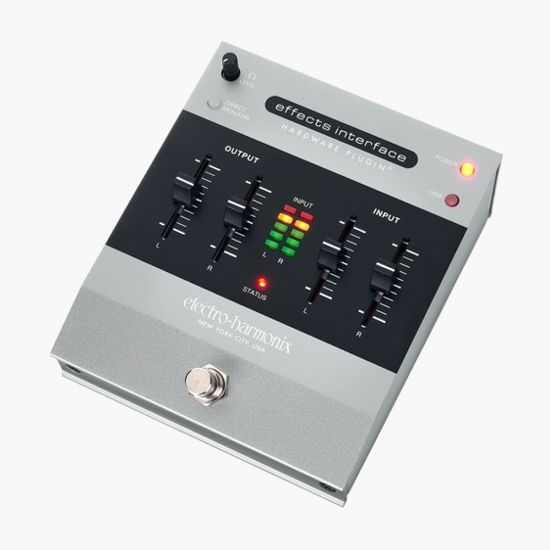

The Electro Harmonix Effects Interface Hardware Plugin Effect Pedal for Electric Guitar enables the use of pedals and other physical guitar equipment with a DAW, as well as the use of computer plugins within a guitar rig. It does not require special converters or DI boxes, as it processes the signal and transmits it between hardware and software via a USB-C connection. It offers three modes: Hardware Plugin Mode, which sends tracks/signals from the DAW through pedals/hardware; Pedalboard Mode, which routes the instrument through DAW plugins and back into the signal chain; and Audio Interface Mode, which functions as a standard USB audio interface with two inputs and two outputs. It includes a power supply.
Features
- Audio interface mode: Use of the effect interface as a conventional USB audio interface with two inputs and two outputs
- Stereo inputs and outputs with dedicated level control sliders
- Headphone output with volume control
- Controls: L & R Input Level, L & R Output Level
- Footswitch: Effect bypass
- LED: Power, USB, Status
- Display: Input Level
- L & R inputs: Two 6.3 mm jacks
- L & R outputs: Two 6.3 mm jacks
- Power consumption: 200 mA
- Power supply via 9 V DC mains adapter (2.1 x 5.5 mm barrel connector, centre negative
- DImensions: 114 x 146 x 57 mm
- Includes power supply
