Details

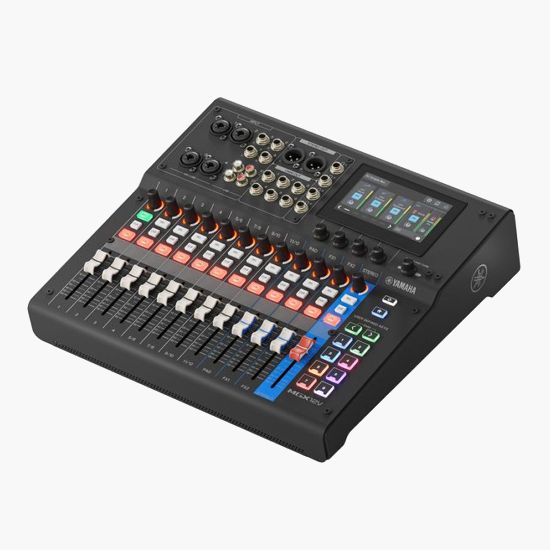

The Yamaha MGX12V BK Compact 12-Channel Digital Mixer is designed for live applications, streaming, audio production, and professional recording. It features HDMI to USB video/audio input with recording function and real-time HDMI pass-through, 8 mix buses, 2 FX buses, 1 CUE bus, and 1 stereo bus, along with 11 + 1 non-motorised faders. Each channel includes rotary control, select, cue, and on buttons for precise operation. A 4.3″ touchscreen with five rotary controls provides intuitive navigation, complemented by eight assignable function keys arranged in switchable banks. The mixer includes a built-in DSP processor for latency-free monitoring, Bluetooth 5.0 with A2DP support, a built-in USB audio interface, and a microSD card slot. It supports 16-track recording and 2-track playback at 24-bit resolution with sample rates up to 96 kHz, and features Auto Gain, Clip Safe, Simple/Standard Mode, and Scene Recall functions.
Features
- Microphone/line inputs: 4 x XLR/6.3 mm jack combo
- Line input: Four 6.3 mm jacks
- Inputs: Four RCA (2 x L/R)
- Line outputs: Two XLR, 6 x 6.3 mm jack
- Four stereo headphone outputs: 6.3 mm jack
- HDMI In
- HDMI Thru
- Two USB-C ports
- Input for external power supply
- 11 + 1 faders (non-motorised)
- Per channel rotary control, select, cue and on buttons
- 4.3" touchscreen with five rotary controls
- Eight assignable function keys in banks, switchable
- Built-in DSP processor for latency-free monitoring
- Bluetooth 5.0, A2DP
- Built-in USB audio interface
- MicroSD card slot
- 16-track recording / 2-track playback (24-bit / up to 96 kHz)
- Functions: Auto Gain, Clip Safe, Simple/Standard Mode, Scene Recall
- Dimensions: 335 × 96 × 319 mm
- Weight: 4.46 kg
- Colour: Black
