Details

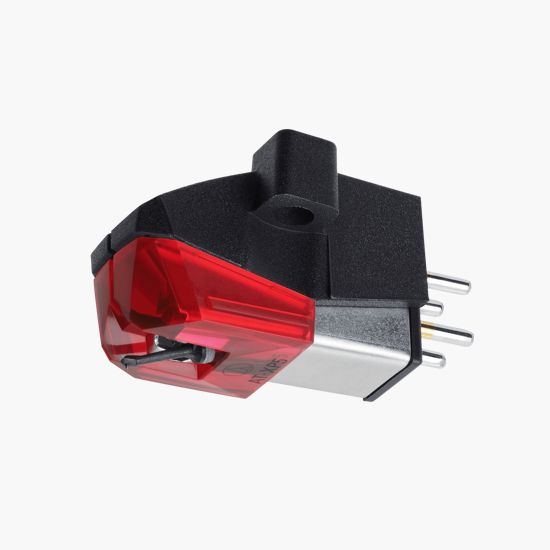

Designed for DJs, the AT-XP5 cartridge features a highly-rigid polyphenylene sulfide (PPS)/glass fiber body and a tracking force of 2 to 4 grams. It also offers a powerful output level of 5.5 mV, and its 0.3 x 0.7 mil elliptical bonded stylus tracks the record groove with high accuracy for outstanding audio reproduction. Plus, the cartridge is specifically designed to provide maximum visibility of the stylus tip.
Features
- Frequency response: 20-18,000 Hz
- Channel separation: 20 (dB at 1 kHz)
- Vertical tracking force: 2.0-4.0 g (3.0 g standard)
- Stylus construction: Bonded round shank
- Recommended load impedance: 47 kΩ
- Output: 5.5 mV (1 kHz, 5 cm/sec.)
- Channel balance: 2.0 dB (1 kHz)
- Stylus shape: 0.3 × 0.7 mil elliptical
- Cantilever: Carbon fiber-reinforced ABS
- Mount: Half-inch
- Replacement stylus: ATN-XP5
- Coil impedance: 6.7 kΩ (1 kHz)
- DC resistance: 990 Ω
- Recommended load capacitance: 100 to 200 pF
- Coil inductance: 1.0 H (1 kHz)
- Vertical tracking angle: 20°
- Dimensions: 17.2 mm (0.68") H × 17.8 mm (0.67") W × 28.3 mm (1.20") D
- Weight: 6.2 g (0.22 oz)
