Details

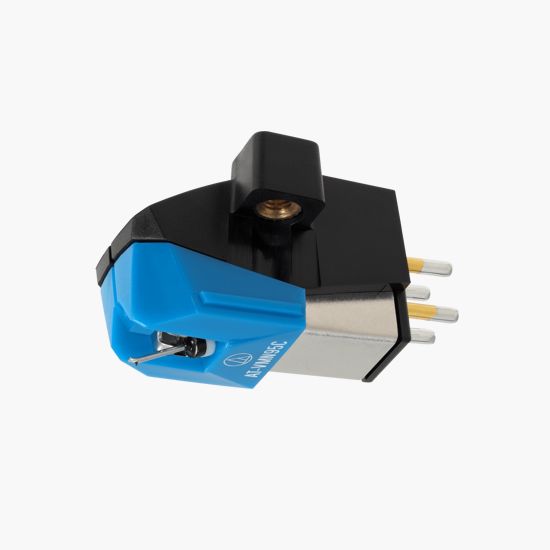

Dual magnet cartridge with with 0.6 mil conical stylus
Features
- Type: VM Stereo Dual Magnet
- Playback frequency range: 20 ~ 20,000 Hz
- Channel separation: 18 dB (1kHz)
- Output voltage: 4.0 mV (1kHz, 5 cm/sec.)
- Vertical tracking angle: 23°
- Stylus shape: Conical bonded
- Stylus size: 0.6 mil
- Stylus construction: Bonded round shank
- Cantilever: Aluminum pipe
- Static compliance: 17 × 10-6 cm/dyne
- Dynamic compliance: 6.5 × 10-6 cm/dyne (100Hz)
- Wire used for coil: T.P. Copper
- Coil impedance: 3.3 kΩ (1kHz)
- DC resistance: 485 Ω
- Rec. load impedance: 100 Ω
- Rec. load capacitance: 100-200 pF
- Coil inductance: 550 μH (1kHz)
- Cartridge weight: 6.3 g
- Mounting: 2 x M2.6 threads/inserts, ½" spacing
- Replacement stylus: AT-VMN95C
- Accessories included: Two 11 mm installation screws; two 8 mm installation screws; two washers.
- Dimensions (H x W x D mm): 17.2 × 18.9 × 28.3
